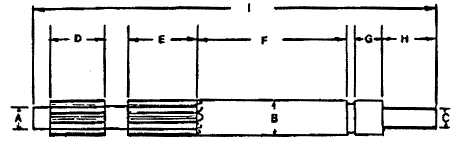

We produce and inventory a wide range of pinions. Since machine modifications and design changes occur, we have produced the following chart and drawing to try to assure you receive the right pinion.
MODEL
A
B
C
D
E
F
G
H
I
75*
.62
1.16
.75
1.62
2.25
1.25
1.25
1.87
9.25
77*
.62
1.16
.75
1.62
2.25
1.25
1.25
1.87
9.25
79*
.62
1.16
.75
1.62
2.25
1.25
1.25
1.87
9.25
89*
.95
1.50
.75
1.50
1.50
4.18
2.00
2.00
13.31
95*
.95
1.50
.75
2.25
2.25
5.13
1.75
2.00
17.75
97*
.95
1.43
.75
3.31
4.00
2.25
1.62
2.00
19.50
90*
.95
1.43
.87
2.50
3.31
6.87
1.31
2.50
18.50
* For each model there are several variations in most dimensions. Please evaluate your pinions and check the dimensions A to I before ordering.
Pinions
Z-95 Pinions
Liners for Tinius Olsen Equipment
Griffin produces liners for all machines ranging from 1/8" to 1/2". Please refer to chart when ordering.
