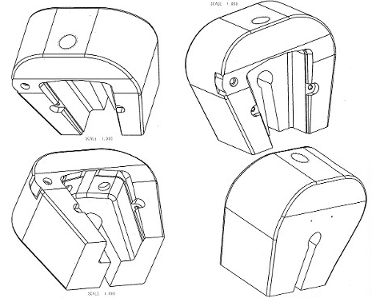

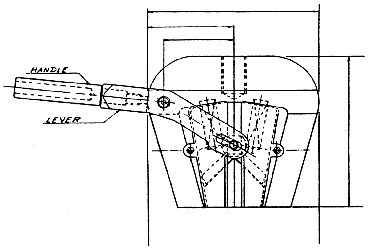

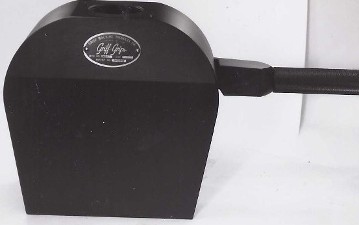

Mechanical Grips Model 545
|
| |
|
| MODEL NUMBER |
MACH. CAPACITY |
JAW WIDTH |
JAW OPENING FLATS |
JAW OPENING VEES |
THREADS FOR RODS |
TEETH PER INCH |
| 545 -1 |
5000 |
3/4" |
3/16" |
1/8" - 1/4" |
3/4" - 10 |
30 |
| 545 -2 |
10,000 |
3/4" |
1/4" |
1/8" - 5/16" |
3/4" - 10 |
30 |
| 545 -3 |
15,000 |
3/4" |
1/4" |
3/16" - 5/16" |
3/4" - 10 |
30 |
| 545 -4 |
5,000 |
1" |
3/16" |
1/8" - 1/4" |
3/4" - 10 |
20 |
| 545 -5 |
10,000 |
1" |
1/4" |
1/8" - 5/16" |
3/4" - 10 |
20 |
| 545 -6 |
15,000 |
1" |
1/4" |
3/16" - 5/16" |
3/4" - 10 |
20 |
| 545 -7 |
20,000 |
1" |
7/16" |
1/4" - 1/2" |
1" - 8 |
16 |
| 545 -8 |
10,000 |
1 1/2" |
1/4" |
1/8" - 5/16" |
1" - 8 |
20 |
| 545 -10 |
20,000 |
1 1/2" |
1/2" |
1/4" - 1/2" |
1" - 8 |
16 |
| 545 -11 |
30,000 |
1 1/2" |
5/8" |
1/2" - 3/4" |
1" - 8 |
16 |
| 545 -12 |
50,000 |
2" |
5/8" |
1/2" - 7/8" |
2" - 12 |
16 |
| 545 -12S |
65,000 |
2 1/4" |
3/4" |
1/2" - 1" |
2" - 12 |
16 |
| 545 -14 |
120,000 |
2 1/2" |
1 1/2" |
3/4" - 2 1/8" |
2" - 12 |
12 |
The above 545 Series is also available in materials for use in extreme temperatures and corrosive environments.

|
| |
|
Mechanical Grips Model X-20
|
| |

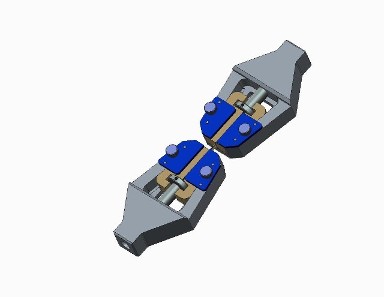

The X-20 is a grip that was designed for testing light weight, thin, flexible specimens in tension or for low load fatigue or compression testing. Inserts for special applications as narrow as 1/8" and up to 3/4" wide are available. The maximum capacity for the standard model is 2000 lb. Higher capacity models are available for specific applications. High temperature and corrosive environment models have been produced for customer needs.
|
|
|
Contact us in Salem, South Carolina, for Griff Grips mechanical grips and other testing supplies.
|
|
