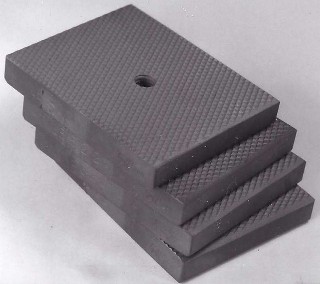

We produce a full range of inserts for all machine sizes. For every ZB Model we produce flat inserts in single or double cut serrations and vee, radius and 360 degree inserts with single cut serrations.
| STYLE |
CAPACITY |
A* |
B* |
C* |
| 12 |
20,000 |
1 3/16 |
2 1/16 |
1/4 |
| 13 |
60,000 |
1 7/8 |
3 3/16 |
3/8 |
| 14 |
60,000 |
1 15/16 |
3 1/2 |
11/32 |
| 552** |
60,000 |
2 |
2 1/2 |
3/8 |
| 527*** |
60,000 |
2 |
3 3/4 |
3/8 |
| 15 |
120,000 |
2 1/4 |
4 |
7/16 |
| 521*** |
120,000 |
2 7/32 |
4 3/8 |
7/16 |
| 16 |
200,000 |
2 7/16 |
4 7/8 |
7/16 |
| 525*** |
200,000 |
2 7/16 |
5 3/8 |
1/2 |
| 17 |
300,000 |
3 |
5 3/8 |
5/8 |
| 529*** |
300,000 |
2 11/16 |
6 1/8 |
5/8 |
| 18 |
400,000 |
**** |
**** |
**** |
| 34 |
600,000 |
**** |
**** |
**** |
* Dimensions are for Flats only, for vees, radius and 360 inserts, A, B, & C are made to the dimensions of the customers test specimens
** For use in block styles 522, 65, 66, & 87
*** For ZB 521, 525, 527, & 529 block specifications provided upon request
**** To customer specifications
|
