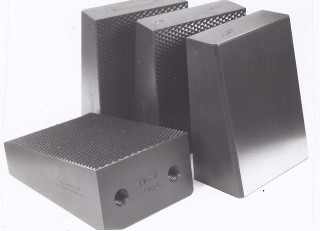

Grips for Riehle Equipment

MACHINE CAPACITY
 FLAT PART VEE PART BLOCK PART RADIUS PART A* B* C* D
5000 Z - 40 ZV - 40 ZB - 40 ZR - 40 2.000 3.000 1.250 **
30,000 Z - 51 ZV - 51 ZB - 51 ZR - 51 2.000 3.000 1.250 **
60,000 Z - 41 ZV - 41 ZB - 41 ZR - 41 2.998 4.000 1.750 **
60,000 Z - 53 ZV - 53 ZB - 53 ZR - 53 2.250 3.500 1.376 **
120,000*** Z - 47 ZV - 47 ZB - 47 ZR - 47 3.750 5.500 2.125 **
150,000*** Z - 42 ZV - 42 ZB - 42 ZR - 42 3.125 5.000 2.000 **
200,000*** Z - 48 ZV - 48 ZB - 48 ZR - 48 4.000 6.500 3.000 **
300,000*** Z - 45 ZV - 45 ZB - 45 ZR - 45 4.000 6.500 3.000 **
400,000*** Z - 46 ZV - 46 ZB - 46 ZR - 46 4.500 7.000 3.500 **
600,000+*** Z - 49 ZV - 49 ZB - 49 ZR - 49 6.000 10.00 4.000 **

* Flat Part Dimensions
** For ZV Orders Specify minimum and maximum sample diameters
For ZR Orders Specify male and female radius
For ZB Orders see insert section
*** Other Variations available for these capacities

Note: Angle iron and channel fixtures available for all models 60,000 lb. or greater vee and 360 inserts available for all models 60,000 lb. or greater.


Accessories for Riehle Equipment


Griffin supplies all of the accessories for most Riehle equipment. Where needed, we provide lifters, retaining plates, shoulder bolts, actuating studs, and main liners.


Lifters
Shoulder Bolts
Lifters
Shoulder Bolts
Retainers
Actuating Plates
Retainers
Actuating Plates
