Clevises -- Tension and Fatigue Model 570
|
| |
We have been producing tension and fatigue clevises for some of the most demanding situations for years. All of our clevis products meet the requirements of ASTM E399 and E647 and are manufactured with or without loading flats. As can be seen in the table below, we produce a full range of standard clevis sizes and will produce to specific customer requirements when requested. We believe that the precision and durability of our product is exceptional. We will manufacture to your needs for corrosive environments, extreme high and low temperature environments, and in special configurations to satisfy special shape and load requirements. For example, one of our customers requires a clevis that would handle fatigue load ranges from 1.0 kips to 100 kips with a fatigue life of 50,000,000 cycles. We were able to provide the product when other suppliers could not.
|
|

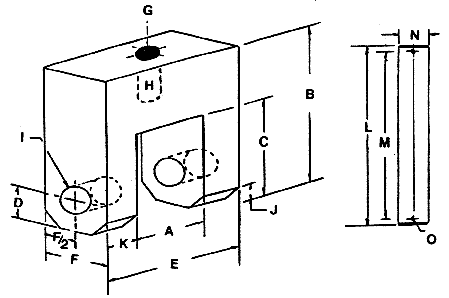

| SPEC. SIZE |
.125 |
.250 |
.50 |
.75 |
1.00 |
1.50 |
2.00 |
2.50 |
3.00 |
4.00 |
5.00 |
6.00 |
| A |
.130 |
.257 |
.515 |
.772 |
1.030 |
1.545 |
2.050 |
2.575 |
3.090 |
4.120 |
5.150 |
6.180 |
| B |
2.50 |
2.50 |
2.50 |
2.75 |
3.00 |
4.00 |
5.00 |
6.25 |
7.00 |
9.00 |
10.80 |
12.35 |
| C |
0.76 |
0.76 |
0.76 |
1.14 |
1.52 |
2.28 |
3.04 |
3.80 |
4.56 |
6.08 |
7.60 |
9.12 |
| D |
0.26 |
0.26 |
0.26 |
0.39 |
0.52 |
0.78 |
1.04 |
1.30 |
1.56 |
2.08 |
2.80 |
3.12 |
| E |
0.75 |
.875 |
1.10 |
1.52 |
2.03 |
3.05 |
4.06 |
5.08 |
6.09 |
8.12 |
10.15 |
12.18 |
| F |
1.00 |
1.00 |
1.20 |
1.20 |
1.20 |
1.80 |
2.40 |
3.00 |
3.60 |
4.80 |
6.00 |
7.20 |
| G |
1/2-20 |
1/2-20 |
3/4-10 |
3/4-10 |
3/4-10 |
1-8 |
1-8 |
1-8 |
2-12 |
2-12 |
1-12 |
2-12 |
| H |
1 |
1 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
3 |
3 |
3 |
3 |
| I |
.25 |
.25 |
.25 |
.375 |
.50 |
.75 |
1.00 |
1.25 |
1.50 |
2.00 |
2.50 |
3.00 |
| J |
.05 |
.05 |
.06 |
.18 |
.37 |
.50 |
.75 |
.87 |
.87 |
1 |
1 |
1 |
| K |
0,31 |
0,31 |
0,31 |
.375 |
0.50 |
0,75 |
1.00 |
1.25 |
1.50 |
2.00 |
2.50 |
3.00 |
| L |
1.26 |
1.38 |
1.61 |
2.03 |
2.58 |
3.61 |
4.62 |
5.73 |
6.74 |
8.77 |
10.70 |
12.73 |
| M |
0.90 |
1.02 |
1.25 |
1.65 |
2.20 |
3.20 |
4.20 |
5.25 |
6.25 |
8.25 |
10.18 |
12.21 |
| N |
0.235 |
0.235 |
0.235 |
0.365 |
0.475 |
0.715 |
0.965 |
1.195 |
1.435 |
1.915 |
2.405 |
2.905 |
| O |
0.18 |
0.18 |
0.18 |
0.18 |
0.18 |
0.18 |
0.18 |
0.20 |
0.20 |
0.20 |
0.20 |
0.20 |
|
|
