REPLACEMENT WEDGE GRIPS FOR MTS 647 SERIES
5.5 KIP FLAT WEDGE FACES
|
KIP
|
MODEL
|
RANGE
|
WIDTH
|
SURFACE
|
|
5.5
|
Z-4201
|
0 – 0.28
|
1”
|
DIAMOND
|
|
5.5
|
Z-4202
|
0.16 – 0.43
|
1”
|
DIAMOND
|
|
5.5
|
ZS-4201
|
0 - 0.28
|
1”
|
SURFALLOY
|
|
5.5
|
ZS-4202
|
0.16 – 0.43
|
1”
|
SURFALLOY
|
|
5.5
|
SPECIAL
|
CUSTOMER*
|
1”
|
CUSTOMER*
|
5.5 KIP VEE WEDGE FACES
|
KIP
|
MODEL
|
RANGE
|
WIDTH
|
SURFACE
|
|
5.5
|
ZV- 4201
|
0 – 0.25
|
1”
|
SERRATED
|
|
5.5
|
ZV-4202
|
0.26 – 0.50
|
1”
|
SERRATED
|
|
5.5
|
SPECIAL
|
CUSTOMER*
|
1”
|
SERRATED
|
22 KIP FLAT WEDGE FACES
|
KIP
|
MODEL
|
RANGE
|
WIDTH
|
SURFACE
|
|
22
|
Z-4211
|
0.0 - 0.30
|
1.75
|
DIAMOND
|
|
22
|
Z-4212
|
0.28 – 0.56
|
1.75
|
DIAMOND
|
|
22
|
Z-4213
|
0.46 – 0.75
|
1.75
|
DIAMOND
|
|
22
|
Z-4214
|
0.0 - 0.30
|
3.00
|
DIAMOND
|
|
22
|
Z-4215
|
0.28 – 0.56
|
3.00
|
DIAMOND
|
|
22
|
Z-4216
|
0.46 – 0.75
|
3.00
|
DIAMOND
|
|
22
|
Z-4217
|
0.67 – 1.00
|
3.00
|
DIAMOND
|
|
22
|
ZS-4211
|
0.0 - 0.30
|
1.75
|
SURFALLOY
|
|
22
|
ZS-4212
|
0.28 – 0.56
|
1.75
|
SURFALLOY
|
|
22
|
ZS-4213
|
0.46 – 0.75
|
1.75
|
SURFALLOY
|
|
22
|
ZS-4214
|
0.0 - 0.30
|
3.00
|
SURFALLOY
|
|
22
|
ZS-4215
|
0.28 – 0.56
|
3.00
|
SURFALLOY
|
|
22
|
ZS-4216
|
0.46 – 0.75
|
3.00
|
SURFALLOY
|
|
22
|
ZS-4217
|
0.67 – 1.00
|
3.00
|
SURFALLOY
|
22 KIP VEE WEDGE FACES
|
KIP
|
MODEL
|
RANGE
|
WIDTH
|
SURFACE
|
|
22
|
ZV-4211
|
0.00 – 0.25
|
1.75
|
SERRATED
|
|
22
|
ZV-4212
|
0.25 – 0.50
|
1.75
|
SERRATED
|
|
22
|
ZV-4213
|
0.50 – 0.75
|
1.75
|
SERRATED
|
|
22
|
ZV-4214
|
0.0 - 0.25
|
3.00
|
SERRATED
|
|
22
|
ZV-4215
|
0.25 – 0.50
|
3.00
|
SERRATED
|
|
22
|
ZV-4216
|
0.50 - 0.75
|
3.00
|
SERRATED
|
|
22
|
ZV-4217
|
0.75 - 1.00
|
3.00
|
SERRATED
|
REPLACEMENT WEDGE GRIPS FOR MTS 647 SERIES
22 KIP WEDGE FACES FOR ROUND SAMPLES
|
KIP
|
MODEL
|
RANGE
|
WIDTH
|
SURFACE
|
|
22
|
ZR-4211
|
0.00 – 0.25
|
1.75/3.00
|
SMOOTH
|
|
22
|
ZR-4212
|
0.25 – 0.50
|
1.75/3.00
|
SMOOTH
|
|
22
|
ZR-4123
|
0.50 – 0.75
|
1.75/3.00
|
SMOOTH
|
|
22
|
ZR-4214
|
0.0 - 0.25
|
1.75/3.00
|
SURFALLOY
|
|
22
|
ZR-4215
|
0.25 – 0.50
|
1.75/3.00
|
SURFALLOY
|
|
22
|
ZR-4216
|
0.50 - 0.75
|
1.75/3.00
|
SURFALLOY
|
|
22
|
ZR-4217
|
0.75 - 1.00
|
3.00
|
SERRATED
|
55 KIP FLAT WEDGE FACES
|
KIP
|
MODEL
|
RANGE
|
WIDTH
|
SURFACE
|
|
55
|
Z-4221
|
0.04 – 0.47
|
2.00
|
DIAMOND
|
|
55
|
Z-4222
|
0.24 – 0.67
|
2.00
|
DIAMOND
|
|
55
|
Z-4223
|
0.59 – 1.02
|
2.00
|
DIAMOND
|
|
55
|
Z-4224
|
0.04 – 0.47
|
4.00
|
DIAMOND
|
|
55
|
Z-4225
|
0.24 – 0.67
|
4.00
|
DIAMOND
|
|
55
|
Z-4226
|
0.59 – 1.02
|
4.00
|
DIAMOND
|
|
55
|
Z-4227
|
+ 1.02
|
4.00
|
DIAMOND
|
|
55
|
ZS-4221
|
0.04 – 0.47
|
2.00
|
SURFALLOY
|
|
55
|
ZS-4222
|
0.24 – 0.67
|
2.00
|
SURFALLOY
|
|
55
|
ZS-4223
|
0.59 – 1.02
|
2.00
|
SURFALLOY
|
|
55
|
ZS-4224
|
0.04 – 0.47
|
4.00
|
SURFALLOY
|
|
55
|
ZS-4225
|
0.24 – 0.67
|
4.00
|
SURFALLOY
|
|
55
|
ZS-4226
|
0.59 – 1.02
|
4.00
|
SURFALLOY
|
|
55
|
ZS-4227
|
+ 1.02
|
4.00
|
SURFALLOY
|
55 KIP VEE WEDGE FACES
|
KIP
|
MODEL
|
RANGE
|
WIDTH
|
SURFACE
|
|
55
|
ZV-4221
|
0.00 – 0.25
|
2.00
|
SERRATED
|
|
55
|
ZV-4222
|
0.25 – 0.50
|
2.00
|
SERRATED
|
|
55
|
ZV-4223
|
0.50 – 0.75
|
2.00
|
SERRATED
|
|
55
|
ZV-4224
|
0.0 - 0.25
|
4.00
|
SERRATED
|
|
55
|
ZV-4225
|
0.25 – 0.50
|
4.00
|
SERRATED
|
|
55
|
ZV-4226
|
0.50 - 0.75
|
4.00
|
SERRATED
|
|
55
|
ZV-4227
|
0.75 - 1.00
|
4.00
|
SERRATED
|
|
55
|
ZV-4228
|
+1.00
|
4.00
|
SERRATED
|
55 KIP WEDGE FACES FOR ROUND SAMPLES
|
KIP
|
MODEL
|
RANGE
|
WIDTH
|
SURFACE
|
|
55
|
ZR-4221
|
0.00 – 0.25
|
2.00/4.00
|
.SMOOTH
|
|
55
|
ZR-4222
|
0.25 – 0.50
|
2.00/4.00
|
SMOOTH
|
|
55
|
ZR-4123
|
0.50 – 0.75
|
2.00/4.00
|
SMOOTH
|
|
55
|
ZR-4224
|
0.0 - 0.25
|
2.00/4.00
|
SURFALLOY
|
|
55
|
ZR-4225
|
0.25 – 0.50
|
2.00/4.00
|
SURFALLOY
|
|
55
|
ZR-4226
|
0.50 - 0.75
|
2.00/4.00
|
SURFALLOY
|
|
55
|
ZR-4227
|
0.75 - 1.00
|
4.00
|
SERRATED
|
REPLACEMENT WEDGE GRIPS FOR MTS 647 SERIES
110 KIP FLAT WEDGE FACES
|
KIP
|
MODEL
|
RANGE
|
WIDTH
|
SURFACE
|
|
110
|
Z-4231
|
0.00 – 0.43
|
4.00
|
DIAMOND
|
|
110
|
Z-4232
|
0.40 – 0.83
|
4.00
|
DIAMOND
|
|
110
|
Z-4233
|
0.80 – 1.23
|
4.00
|
DIAMOND
|
|
110
|
Z-4234
|
1.20 – 1.63
|
4.00
|
DIAMOND
|
|
110
|
Z-4235
|
1.60 – 2.03
|
4.00
|
DIAMOND
|
|
110
|
Z-4236
|
+ 2.03
|
4.00
|
DIAMOND
|
|
110
|
ZS-4237
|
0.00 – 0.43
|
4.00
|
SURFALLOY
|
|
110
|
ZS-4231
|
0.40 – 0.83
|
4.00
|
SURFALLOY
|
|
110
|
ZS-4232
|
0.80 – 1.23
|
4.00
|
SURFALLOY
|
|
110
|
ZS-4233
|
1.20 – 1.63
|
4.00
|
SURFALLOY
|
|
110
|
ZS-4234
|
1.60 – 2.03
|
4.00
|
SURFALLOY
|
|
110
|
ZR-4326
|
+ 2.03
|
4.00
|
SURFALLOY
|
110 KIP VEE WEDGE FACES
|
KIP
|
MODEL
|
RANGE
|
WIDTH
|
SURFACE
|
|
110
|
ZV-4231
|
0.25 -0.61
|
4.00
|
SERRATED
|
|
110
|
ZV-4232
|
0..60 - 0.96
|
4.00
|
SERRATED
|
|
110
|
ZV-4233
|
0.95 – 1.32
|
4.00
|
SERRATED
|
|
110
|
ZV-4234
|
1.30 – 1.67
|
4.00
|
SERRATED
|
|
110
|
ZV-4235
|
1.65 – 2.02
|
4.00
|
SERRATED
|
110 KIP WEDGE FACES FOR ROUND SAMPLES
|
KIP
|
MODEL
|
RANGE
|
WIDTH
|
SURFACE
|
|
110
|
ZR-4231
|
0.00 – 0.50
|
4.00
|
SMOOTH
|
|
110
|
ZR-4232
|
0.50 – 0.75
|
4.00
|
SMOOTH
|
|
110
|
ZR-4133
|
0.75 - 1.00
|
4.00
|
SMOOTH
|
|
110
|
ZR-4234
|
0.0 - 0.50
|
4.00
|
SURFALLOY
|
|
110
|
ZR-4235
|
0.50 – 0.75
|
4.00
|
SURFALLOY
|
|
110
|
ZR-4236
|
0.75 – 1.00
|
4.00
|
SURFALLOY
|
|
110
|
ZR-4237
|
0.75 - 1.00
|
4.00
|
SERRATED
|
220 KIP FLAT WEDGE FACES
|
KIP
|
MODEL
|
RANGE
|
WIDTH
|
SURFACE
|
|
220
|
Z-4241
|
0.00 – 0.90
|
5.00
|
DIAMOND
|
|
220
|
Z-4242
|
0.89 – 1.77
|
5.00
|
DIAMOND
|
|
220
|
Z-4243
|
1.77 – 2.64
|
5.00
|
DIAMOND
|
|
220
|
Z-4244
|
+ 2.64
|
5.00
|
DIAMOND
|
220 KIP VEE WEDGE FACES
|
KIP
|
MODEL
|
RANGE
|
WIDTH
|
SURFACE
|
|
220
|
ZV-4241
|
0.25 -0.45
|
5.00
|
SERRATED
|
|
220
|
ZV-4242
|
0..44 – 1.00
|
5.00
|
SERRATED
|
|
220
|
ZV-4243
|
1.00 – 1.76
|
5.00
|
SERRATED
|
|
220
|
ZV-4244
|
1.76 – 2.50
|
5.00
|
SERRATED
|

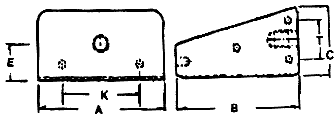

REPLACEMENT WEDGE GRIPS FOR MTS 641 SYSTEM
FLAT GRIPS
|
KIP
|
MODEL
|
A
|
B
|
C
|
|
2.0
|
Z-3201
|
1.25
|
1.50
|
0.94
|
|
20
|
Z-3206
|
1.50
|
2.50
|
1.42
|
|
20
|
Z-3236
|
1.50
|
2.50
|
1.42
|
|
20
|
Z-3251
|
1.50
|
2.50
|
1.42
|
|
20
|
Z-3252
|
1.50
|
2.50
|
1.42
|
|
50
|
Z-3211
|
3.50
|
3.50
|
1.75
|
|
50
|
Z-3226
|
3.50
|
3.50
|
1.75
|
|
100
|
Z-3216
|
3.50
|
5.00
|
2.31
|
|
200
|
Z-3241
|
4.00
|
5.75
|
3.19
|
|
300
|
Z-3221
|
4.50
|
6.50
|
3.50
|
|
600
|
Z-3231
|
6.50
|
8.00
|
4.18
|
AVAILABLE FLAT GRIP FACE SURFACE
|
DIAMOND, 10, 16, 24, 32 PER INCH
|
STRAIGHT, 10, 16, 24, 32 PER INCH
|
SURFALLOY@
|
VEE GRIPS
|
KIP
|
MODEL
|
A
|
B
|
C
|
|
2.0
|
ZV-3201
|
1.25
|
1.50
|
0.94
|
|
20
|
ZV-3206
|
1.50
|
2.50
|
1.42
|
|
20
|
ZV-3236
|
1.50
|
2.50
|
1.42
|
|
20
|
ZV-3251
|
1.50
|
2.50
|
1.42
|
|
20
|
ZV-3252
|
1.50
|
2.50
|
1.42
|
|
50
|
ZV-3211
|
3.50
|
3.50
|
1.75
|
|
50
|
ZV-3226
|
3.50
|
3.50
|
1.75
|
|
100
|
ZV-3216
|
3.50
|
5.00
|
2.31
|
|
200
|
ZV-3241
|
4.00
|
5.75
|
3.19
|
|
300
|
ZV-3221
|
4.50
|
6.50
|
3.50
|
|
600
|
ZV-3231
|
6.50
|
8.00
|
4.18
|

AVAILABLE VEE GRIP SURFACES AND VEE RANGES
|
STRAIGHT , 10, 16, 24 AND 32
|
VEE RANGES TO CUSTOMERS SPECIFICATIONS
|
|
